SC / UPC Singlemode Fiber Optic Adapter , Duplex Fiber Optic Connector

Brand Name : TTI

Model Number : ASC-DX

Certification : ROHS, SGS, ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , PayPal

Supply Ability : 10000 pieces per day

Delivery Time : 3-5days

Packaging Details : 25pcs/Case

Operating Temperature Range : -40°C ~ +80°C

Type : Duplex

Sleeve : zirconia, Bronze

Housing : Plastic, Metal

Structure : With Flange, Without Flange

Color : Blue, Green or customized

Contact Now

SC / UPC Singlemode Fiber Optic Adapter , Duplex Fiber Optic Connector

Description:

optic sc-sc adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Feature:

High Reliability and Stability
High precision zirconia or standard phosphor bronze sleeves
Low Splicing Loss
Available as FC,SC,ST,LC,MTRJ,MPO

Application:

Fiber Optic Transmission System
Data Processing Networks
Testing / Measurement Instruments
Fiber Optic instruments measuring appliance

Specification:

Specification
Type	SC/FC/ST/LC/MU/MTRJ/MPO
Mode	SM,MM
Insertion Loss	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB	≤0.2dB
Material of sleeve	>50N
Working Temperature	Zirconia or Bronze

Reliability testing:

Reliability testing
Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Product Tags:

fibre optic adapter

optical fiber adapter

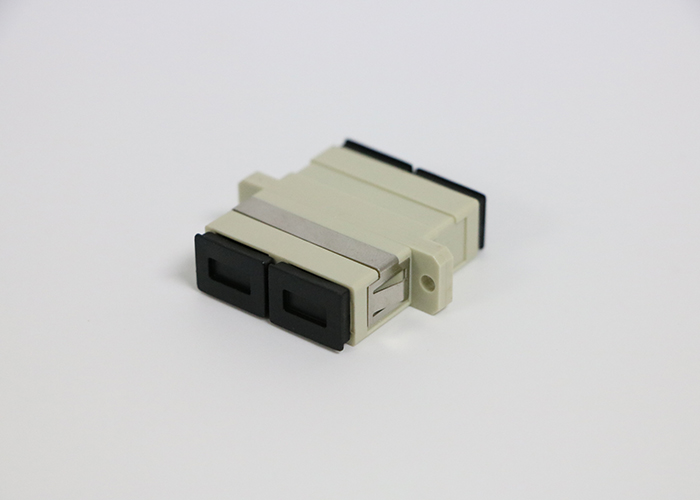

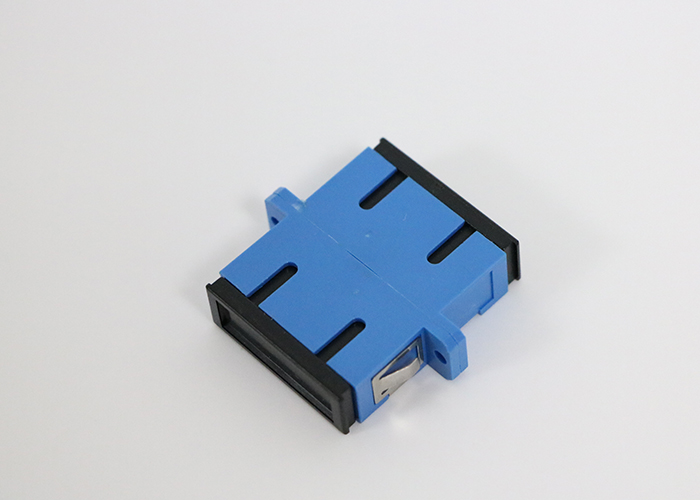

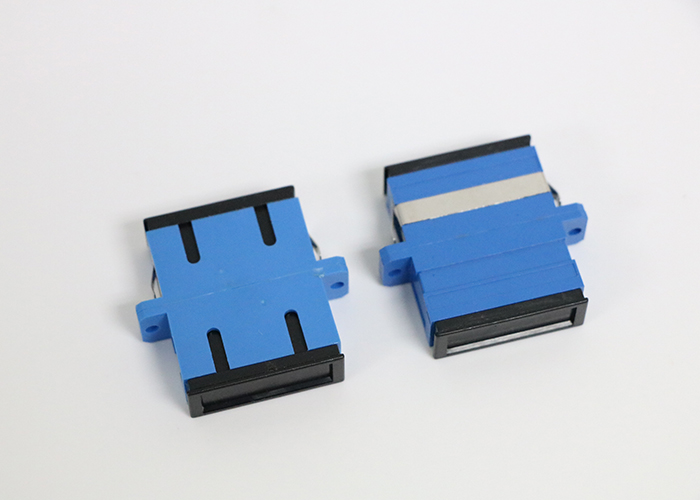

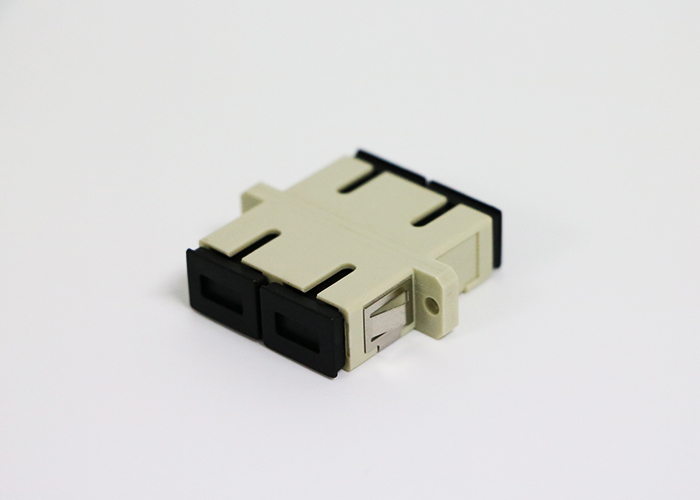

SC / UPC Singlemode Fiber Optic Adapter , Duplex Fiber Optic Connector Images
